6" Jointer with Helical Head, 1HP 1PH 115/230V (54HH)
Powermatic 4HH Jointer, 1 HP, 1PH 115/230V (1791317K)
Manual

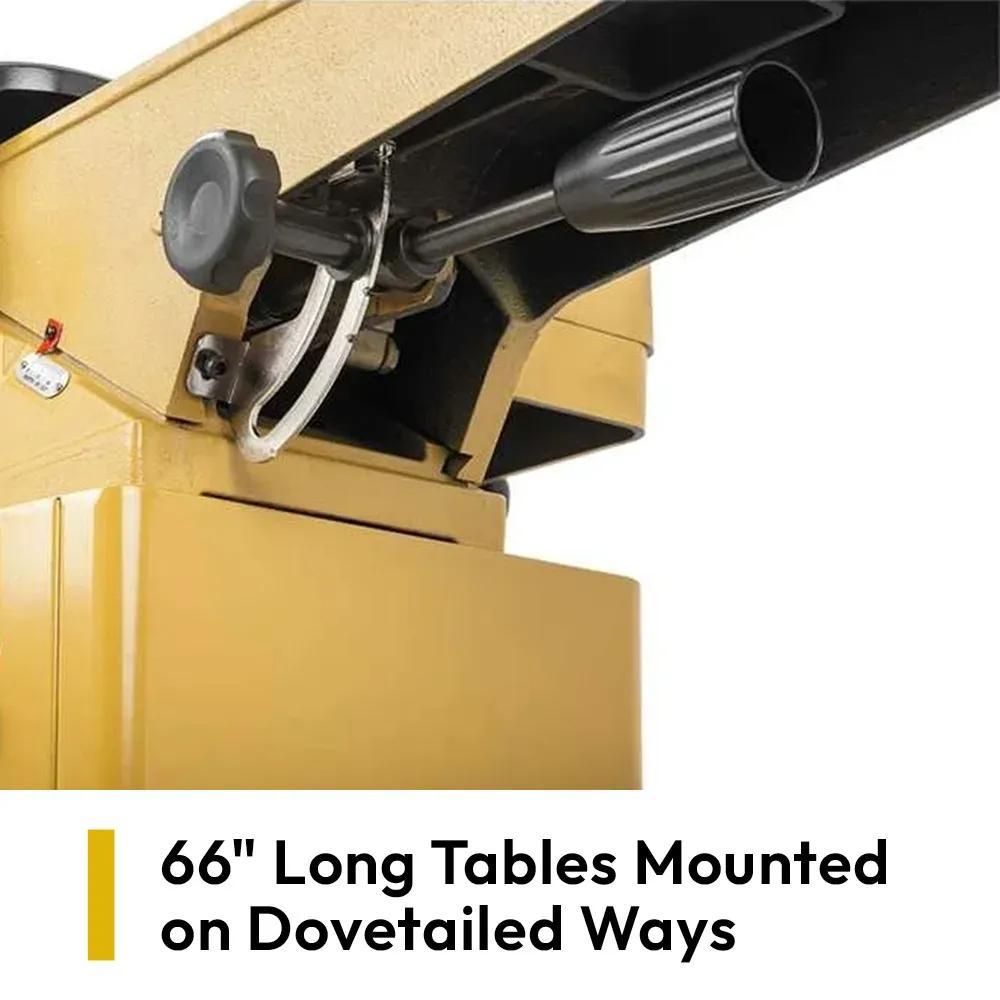

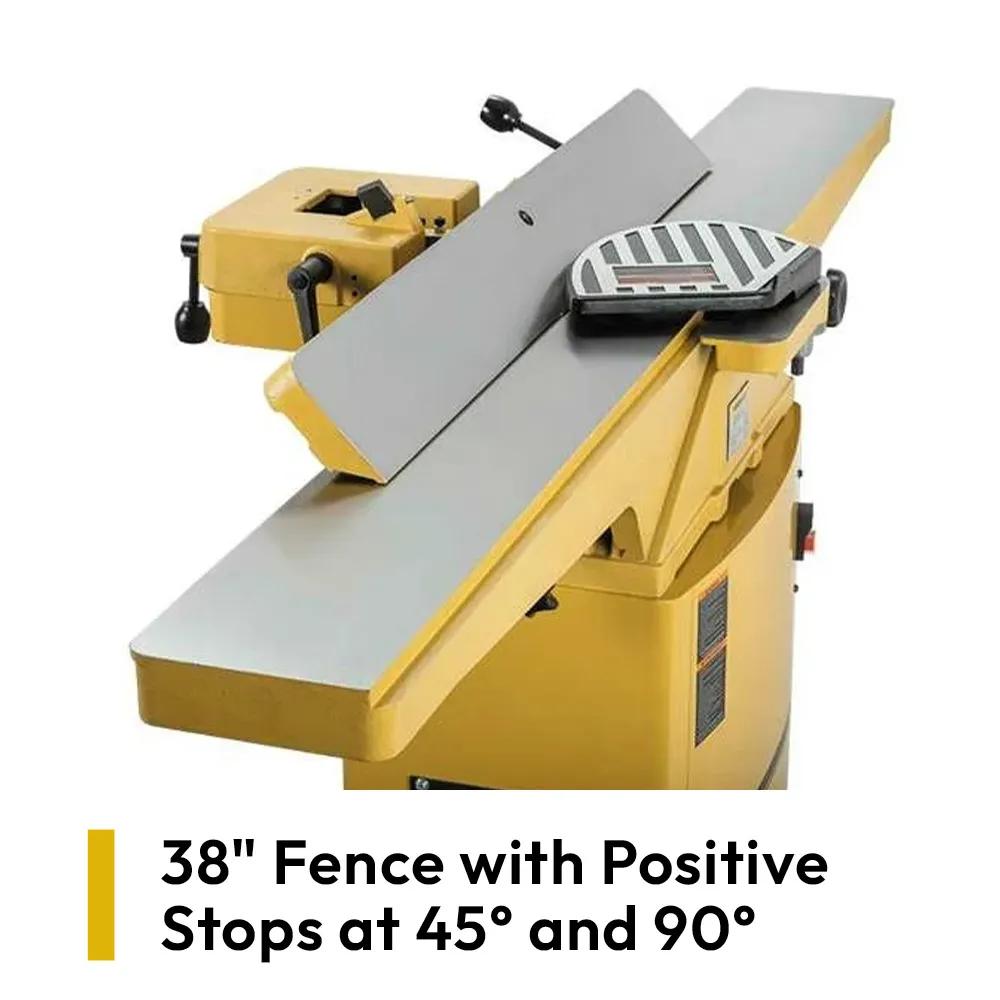

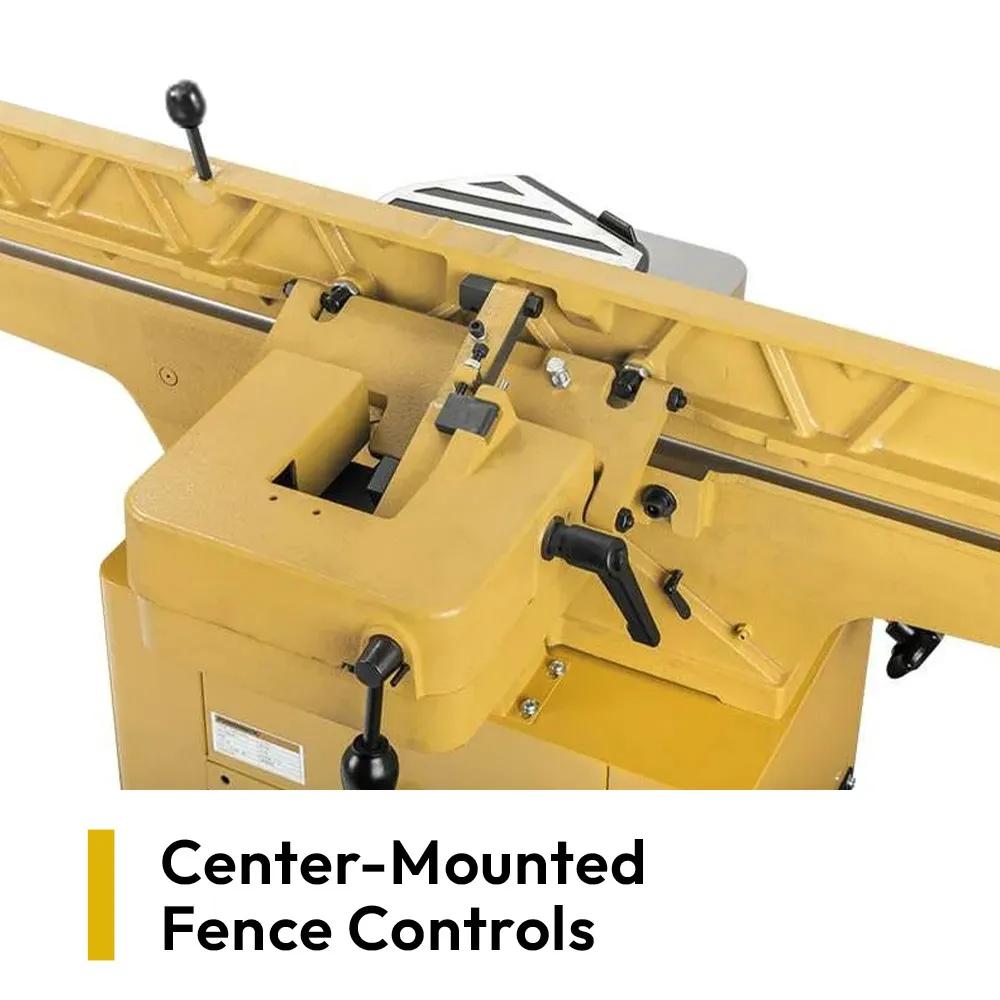

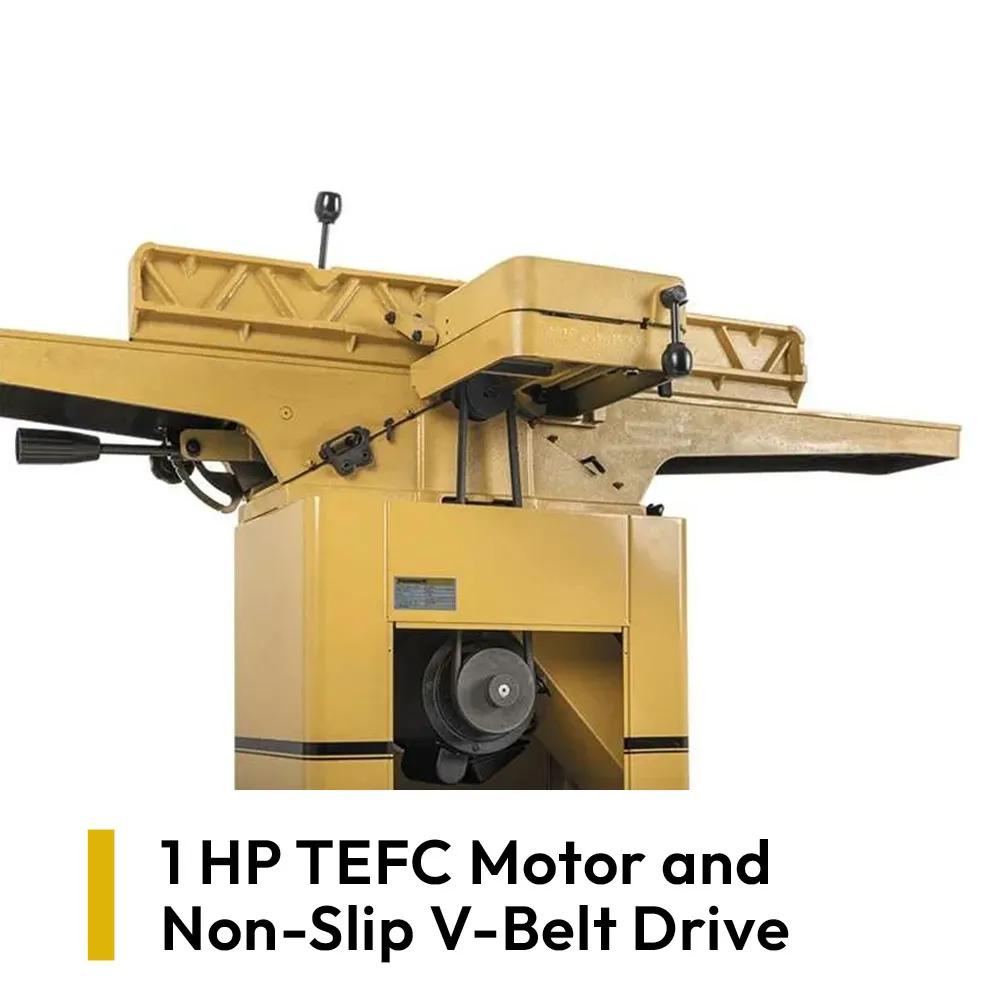

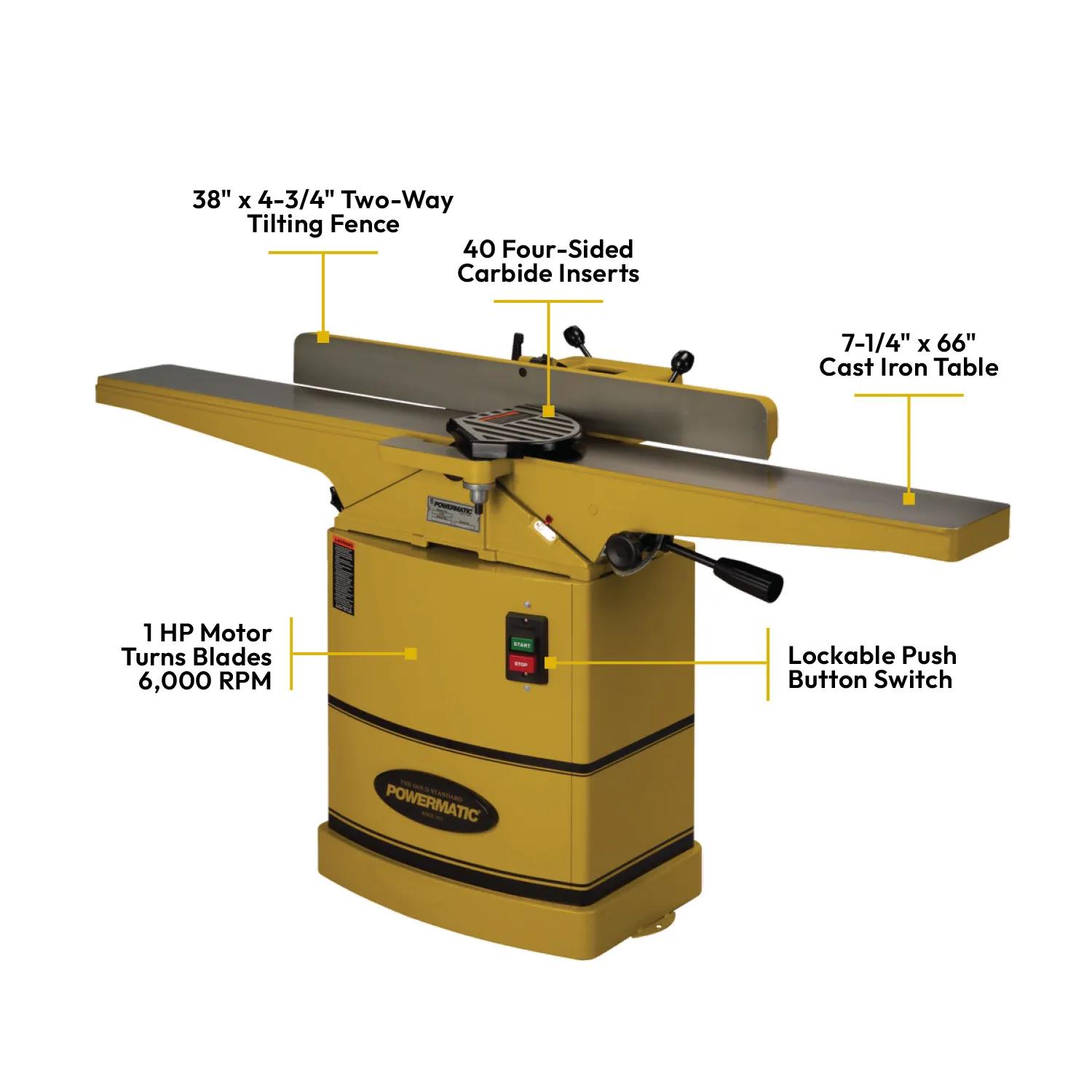

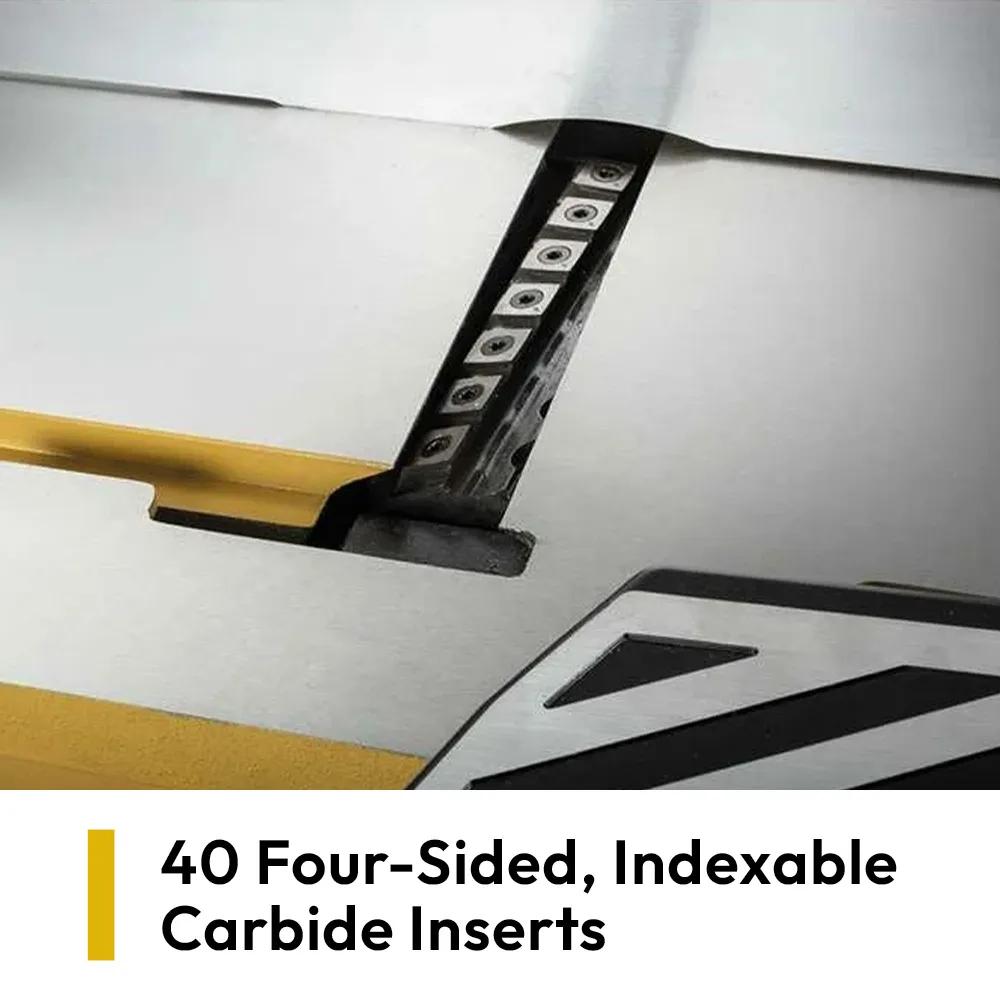

This 6" Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
| Stock Number | PM9-1791317K |
|---|---|
| Cutterhead Diameter (In.) | 2-1/2 |
| Cutterhead Speed (RPM) | 6000.0000 |
| Cutting Capacity (W x D) (In.) | 6 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 450 |
| Dust Port Outside Diameter (In.) | 4 |
| Infeed Table Length (In.) | 32-1/2 |
| Model Number | 54HH |
| Motor Amps | 13/6.5 |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 115/230 |
| Number of Knives | 40 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Type of Cutterhead | HELICAL |
| Warranty | 5 Year |
| Gross Weight | 336.0 |
| Maximum Cutting Depth (In.) | 1/8" |
