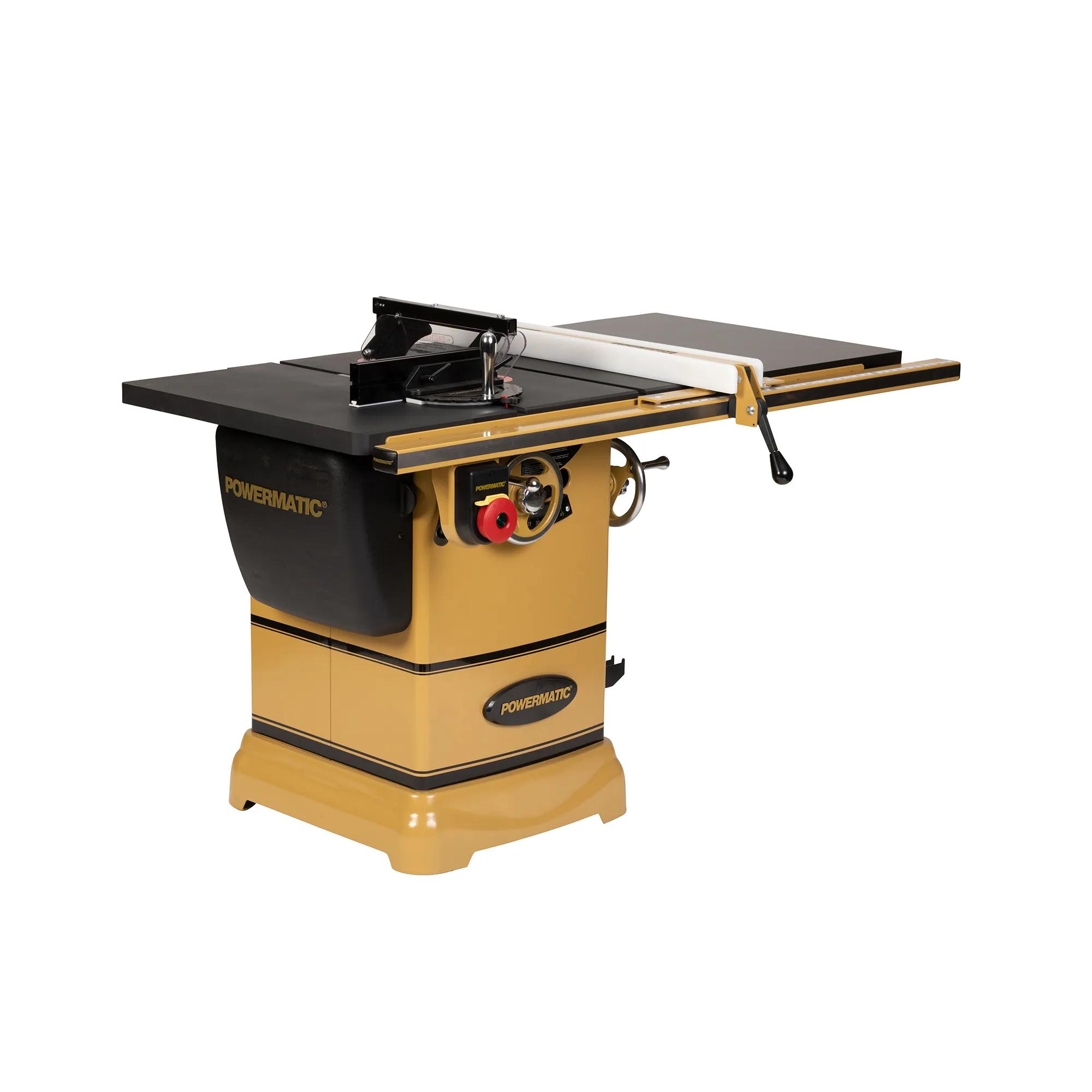

PM1000T, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Accu-Fence System, 1Ph 115/230V
Stock Number:
PM1-1791000KT
Manual (1)
Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. The PM1000 cabinet table saw is an example of this. Now featuring our ArmorGlide Technology that is low-friction and rust-resistant, the PM1000T redefines the limits of design, innovation, and durability.
ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Blade surround and collection hose provides an unobstructed path, maximizing dust collection
Arbor lock allows for one handed blade changes with minimal tools
Conveniently located hands free power switch
Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
Exclusive Accu-Fence provides rigidity and precision
Precision-ground cast iron work surface features a beveled edge for smoother operation
Requires only 115V connection for easy installation
Poly-V belt drive system reduces vibration and maximizes efficiency
| Stock Number | PM1-1791000KT |
|---|---|
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 4200 |
| Blade Diameter (In.) | 10 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Gross Weight (Lbs) | 289 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Depth of Cut (In.) | 2-1/8 or 3-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Left of Blade (In.) | 12 |
| Maximum Rip Right of Blade (In.) | 30 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | T-Slot with Stops |
| Model Number | PM1000T |
| Motor Phase | 1 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115/230 |
| Overall Dimensions (L x W x H) (In.) | 43 x 61 x 44 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Style (Type) | Cabinet |
| Table Height from Floor (In.) | 34-1/4 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
| Table Size (L x W) (In.) | 20 x 27 |
| Table Type | Cast Iron |
| Warranty | 5 Year |
| Gross Weight | 417.8 |
| Net weight | 346.8 |
