PM2800B Drill Press, 1HP 1PH 115/230V
Stock Number:
PM9-1792800B
Manual
At Powermatic, we have a woodworker’s intuition which drives our design process. We look for every opportunity to raise the workshop experience to new levels of performance and functionality. So when we set out to redefine what it means to use a Powermatic Drill Press, we wanted it to be as easy, and as intuitive as possible; to allow you to focus your creative energy on the tasks that make woodworking so rewarding. The PM2800B is the culmination of our efforts. The PM2800B brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you’ll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.

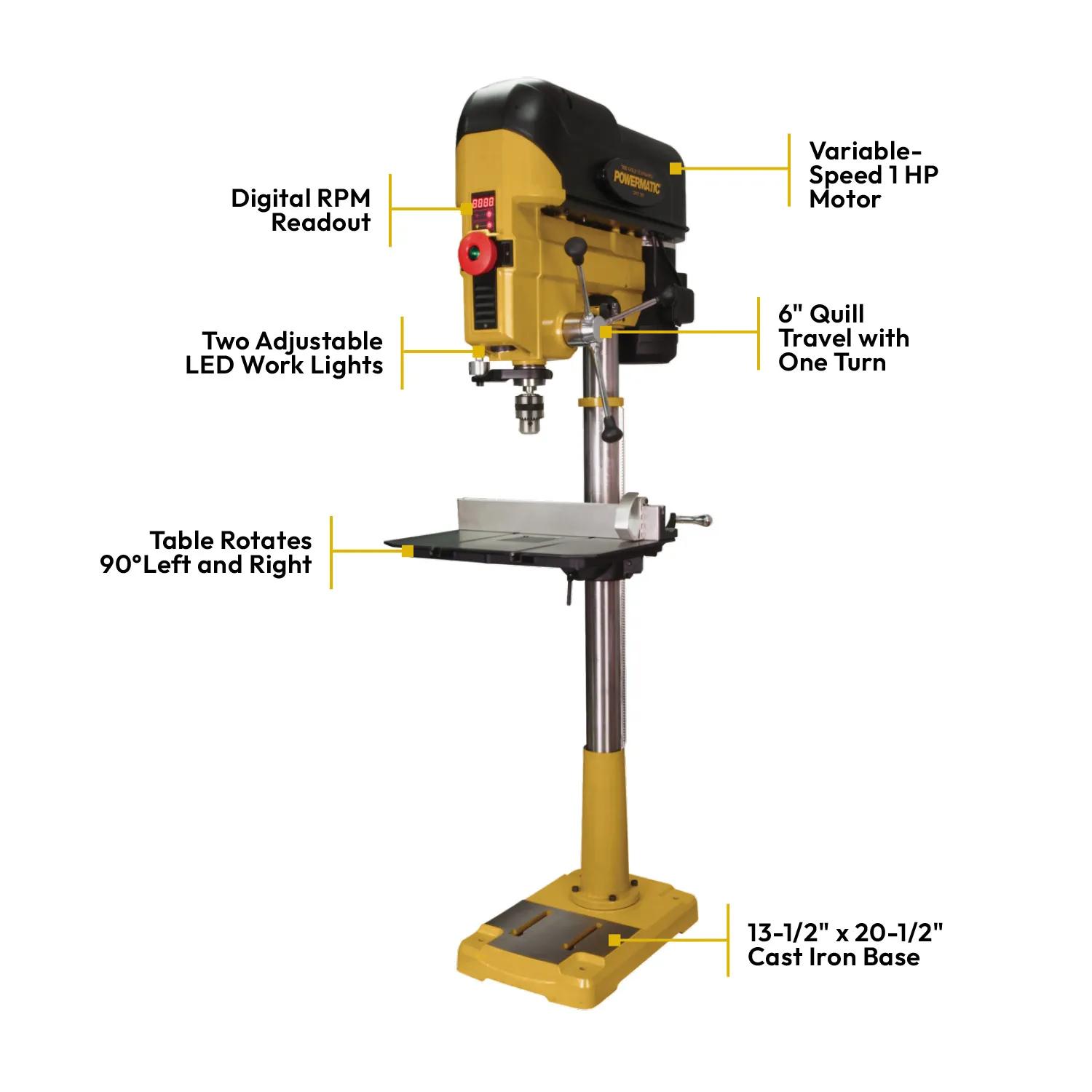

6” of quill travel with one revolution of the handle
Digital RPM readout allows user to optimize the spindle speed to the application
Fence system adjustable for a perfect 90-degree relationship to the table and for rapid alignment of stock
Includes 5/8" keyed chuck
Laser guides provide an accurate indication for tool point

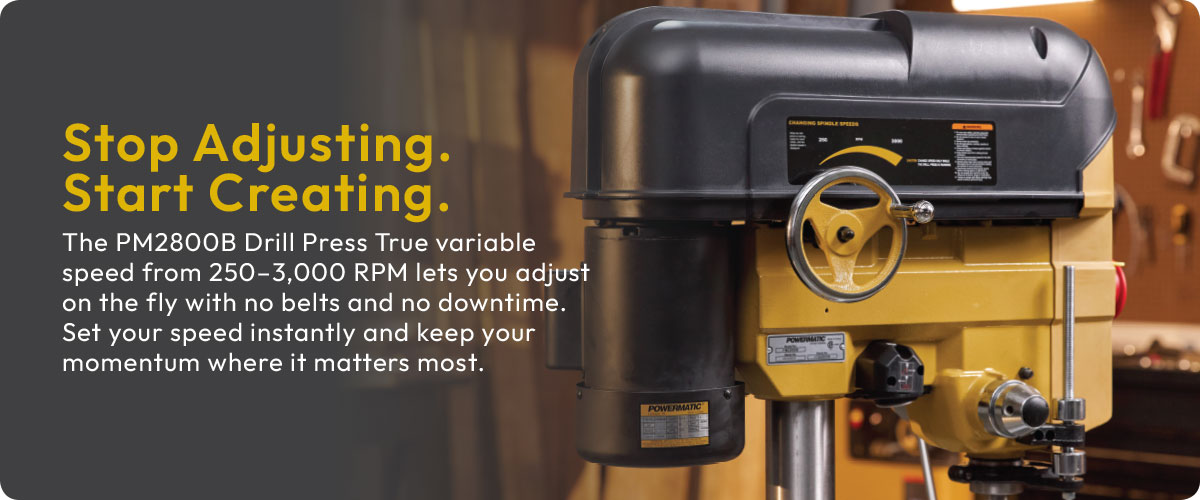

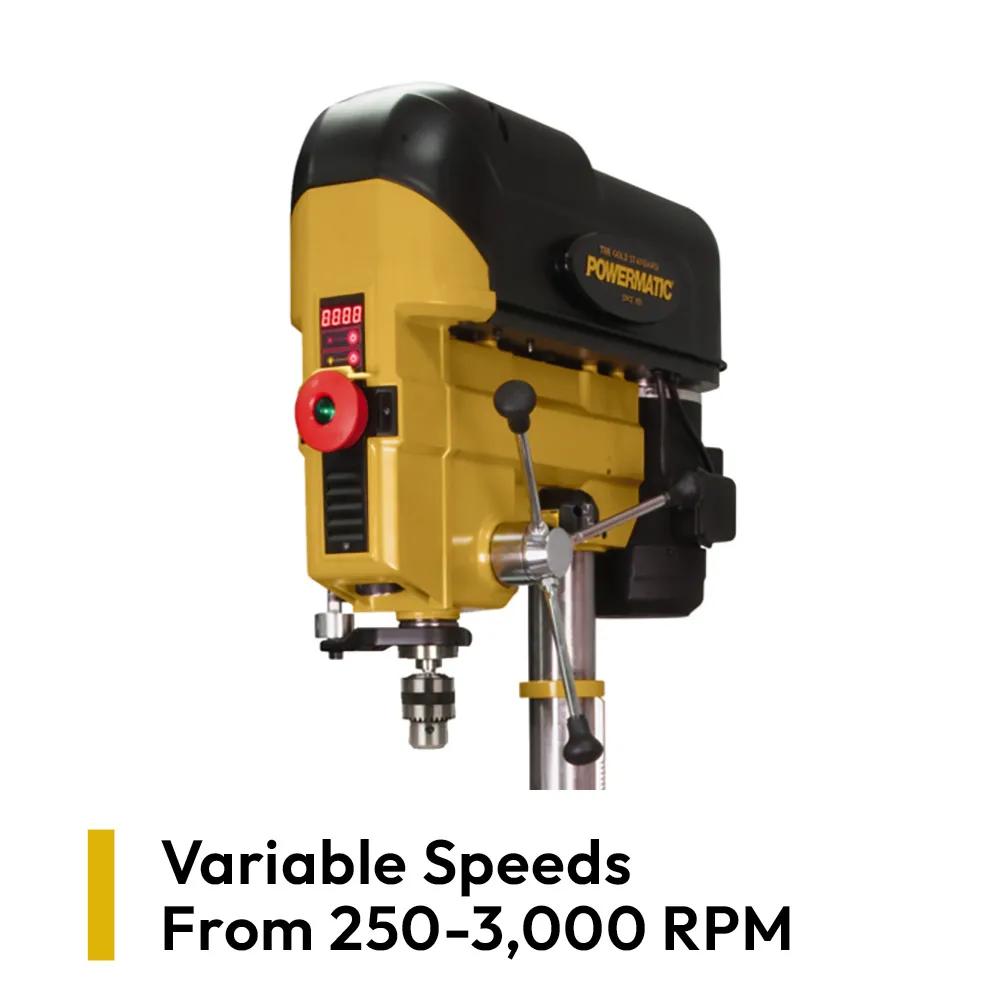

Mechanical variable speed allows for full range of speeds with no belt changes

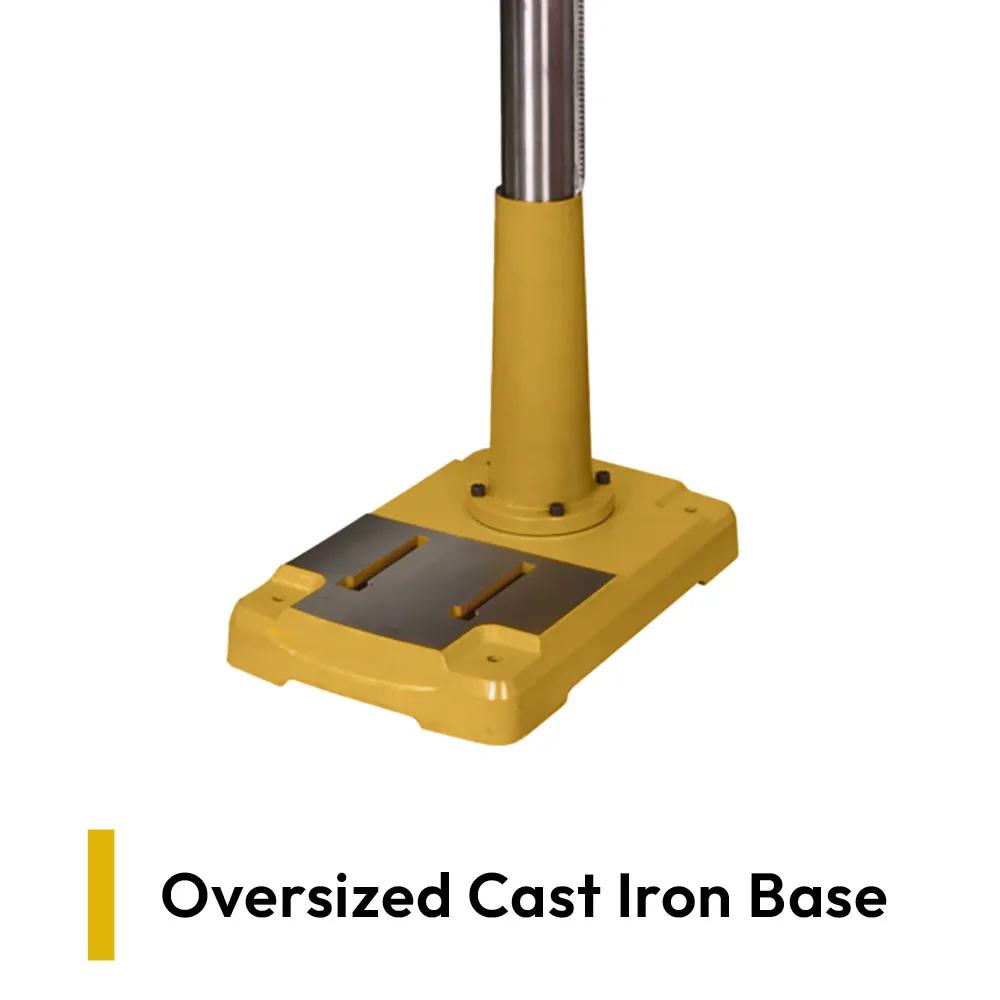

Oversize cast iron base for added stability
Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
Two independently adjustable LED work lights eliminates shadows
Work table can be rotated to a full 90 degree position
| Stock Number | PM9-1792800B |
|---|---|
| Base Dimensions (In.) | 13-1/2 x 20-1/2 |
| Base Work Table (In.) | 10 x 12 |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-1/8 |
| Gross Weight (Lbs) | 266 |
| Model Number | PM2800B |
| Motor Amps | 20/15 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 115/230 |
| Overall Dimensions (L x W x H) (In.) | 18 x 20.25 x 71 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 2.6 |
| Spindle Distance to Base (In.) | 44-3/4 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Floor |
| Swing (In.) | 18" |
| Warranty | 5 Year |
| Weight (Lbs.) | 246 |
| Gross Weight | 266.0 |
| Net weight | 246.0 |
