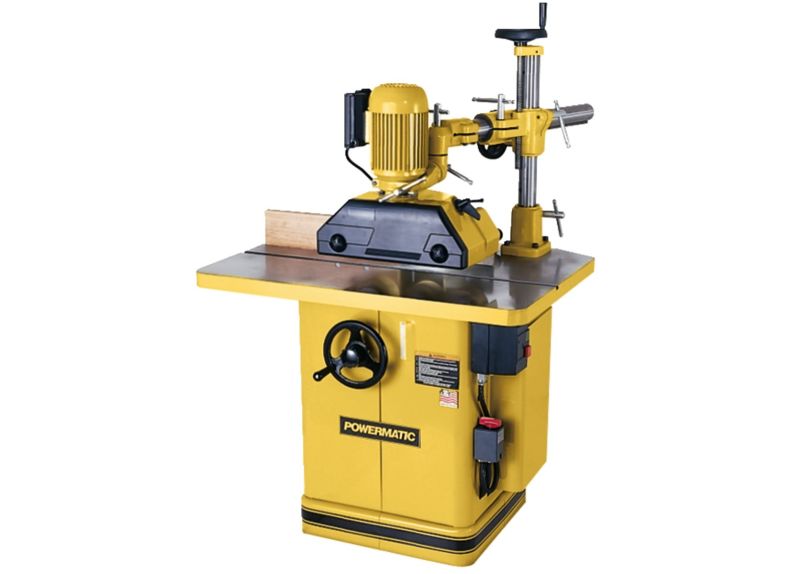

These rugged, heavy-duty Stock Feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding.
Cast iron construction
Continuous duty motors transfer power from the gear box to the feed roller
Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
Roller chain and sprocket design provide positive feeding for all types of materials
Rollers can be changed out easily and quickly
Smart roller system allows for tire to be replaces with out replacing the assembly
Solid cast iron construction of body pieces and base
Support column is fully adjustable for horizontal, vertical or angled feeder position
Universal joints provide stability for vibration free feeding
| Stock Number | PM9-1790807K |
|---|---|
| Feed Rate (FPM) | 13/36/43/108 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 8-1/2 |
| Model Number | PF-31 |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 115 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Swing (Deg.) | 360 |
| Warranty | 5 Year |
| Gross Weight | 143.0 |
| Net weight | 134.0 |
