PM1300TX-CK Dust Collector, 1.75HP 1PH 115/230V, 2-Micron Canister Kit
Stock Number:
PM9-1791079K
Powermatic PM1300TX-CK Dust Collector, 1.75 HP, 1PH 115/230V, 2-Micron Canister Kit (1791079K)
Manual

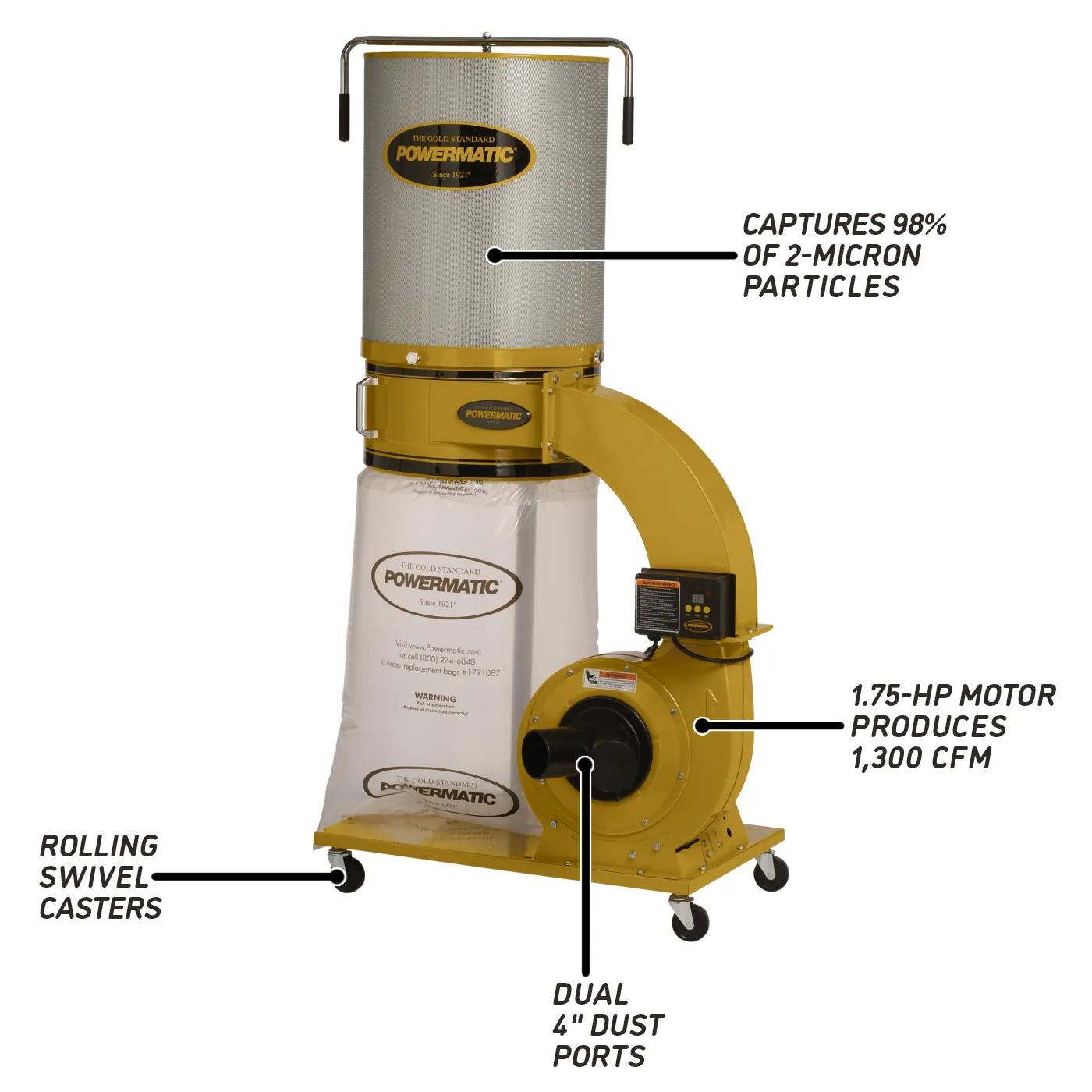

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
10 Cubic feet capacity collection bag reduces number of bag changes
All-metal duct construction for rigidity and improved air flow
Clear plastic collection bag uses snap ring for rapid installation/removal

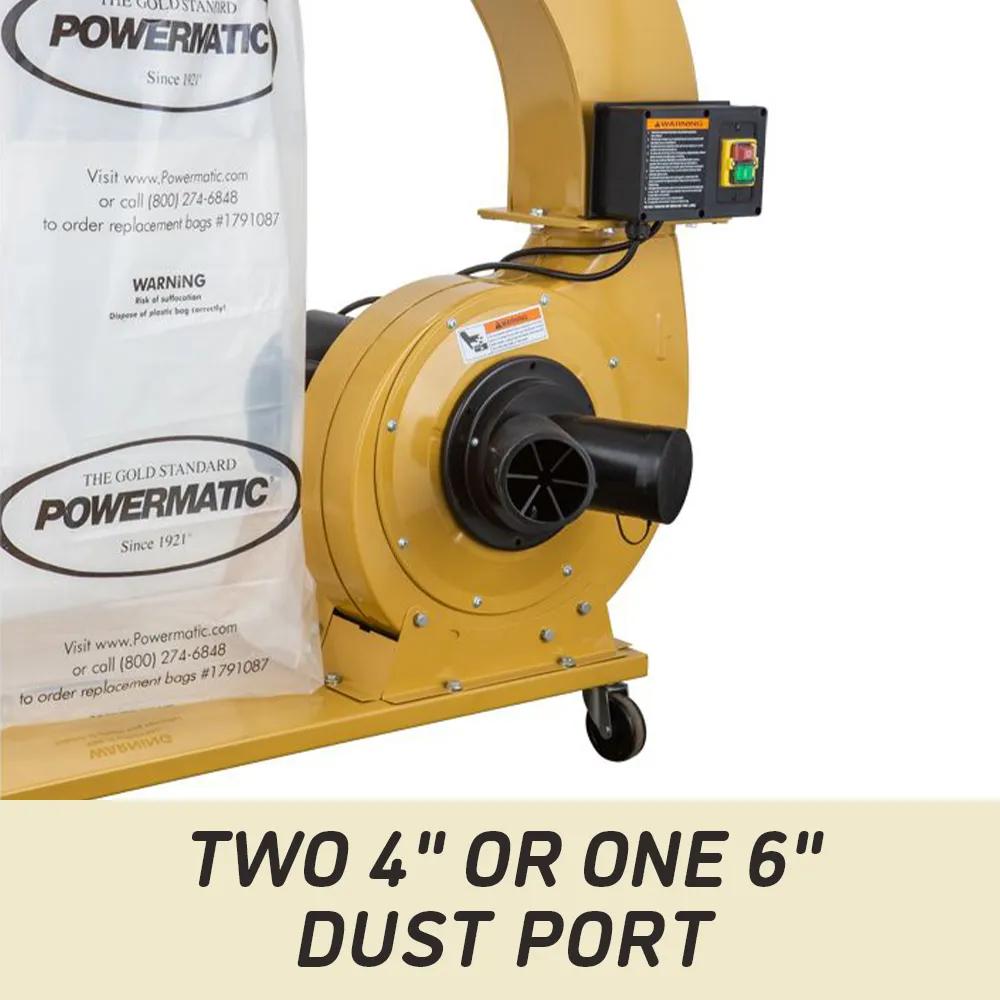

Dual 4" dust ports for simultaneous collection from two machines
Eliminates premature filter clogging for sustained performance
Four swivel casters for easy maneuverability
Remote-controlled digital timer can be programmed for up to 99 minutes
The large steel impeller is powered by a 1-3/4HP motor for peak performance.
TurboCone™ improves chip separation and collector bag packing efficiency
| Stock Number | PM9-1791079K |
|---|---|
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Air Flow @ 6" (CFM) | 1,300 |
| Bag Diameter (In.) | 20 |
| Canister Filter Length (In.) | 26 |
| Collection Bag Length (In.) | 26 |
| Efficiency (Micron) | 2 |
| Filter Bag/Canister Length (In.) | 26 |
| Gross Weight (Lbs) | 165 |
| Impeller Diameter (In.) | 12 |
| Impeller Fins | 6 |
| Impeller Material | Steel |
| Model Number | PM1300TX-CK |
| Motor Amps | 15/7.5 |
| Motor Phase | 1 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115/230 |
| Overall Dimensions (L x W x H) (In.) | 37 x 29 x 72 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Rating (Db.) | 75-90 |
| Static Pressure (Wc.) | 11.31 |
| Style (Type) | Dust Collector |
| Velocity @ 6" (FPM) | 5,374 |
| Warranty | 5 Year |
| Gross Weight | 165.0 |
| Net weight | 154.0 |
