PM2700 Shaper, 5HP 1PH 230V

Stock Number
PM9-1280101C

PM2700 Shaper, 5HP, 1PH with DRO and Casters

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.

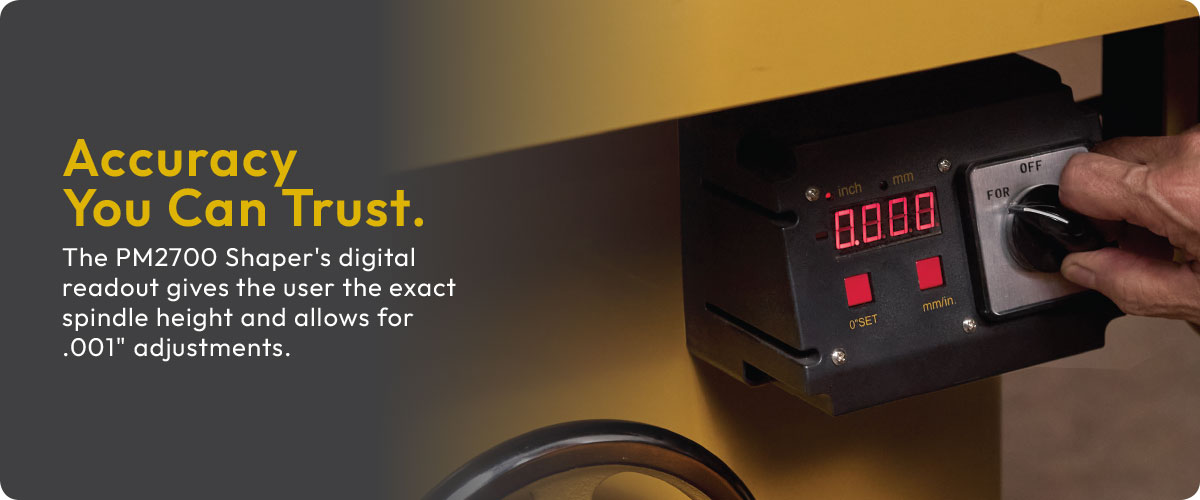

Digital readout gives the use exact spindle height and allows for .001" adjustments
Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
Heavy duty cast iron base
Includes 3/4" and 1-1/4" spindles
Independently adjustable fence sides
Integrated casters can be raised and lowered to mobilize shaper
Micro adjust control knobs allow for precision adjustment for the fence
Superior clear cutter guard promotes safety, allows observation of the entire cut
Table predrilled and tapped for feeder mounting in two locations
Two speed reversible spindle speeds
More Information
Stock NumberPM9-1280101C
Dust Collection Minimum CFM Required (CFM)600
Dust Port Outside Diameter (In.)4
Maximum Spindle Diameter (In.)1-1/4
Model NumberPM2700
Motor Amps22
Motor Phase1
Motor Power (HP)5
Motor Voltage (V.)230
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)40
Spindle Travel (In.)4
Style (Type)Closed Stand
Warranty5 Year
Gross Weight769.0
Net weight769.0
