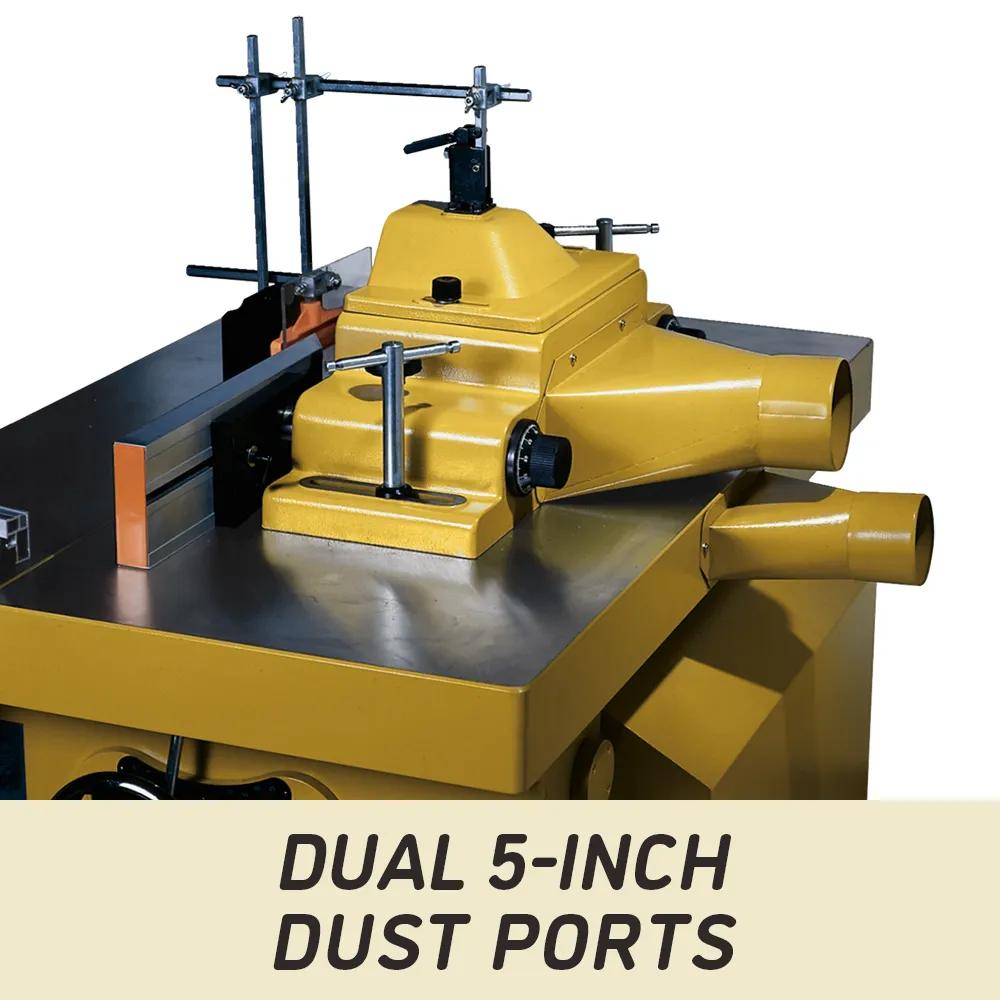

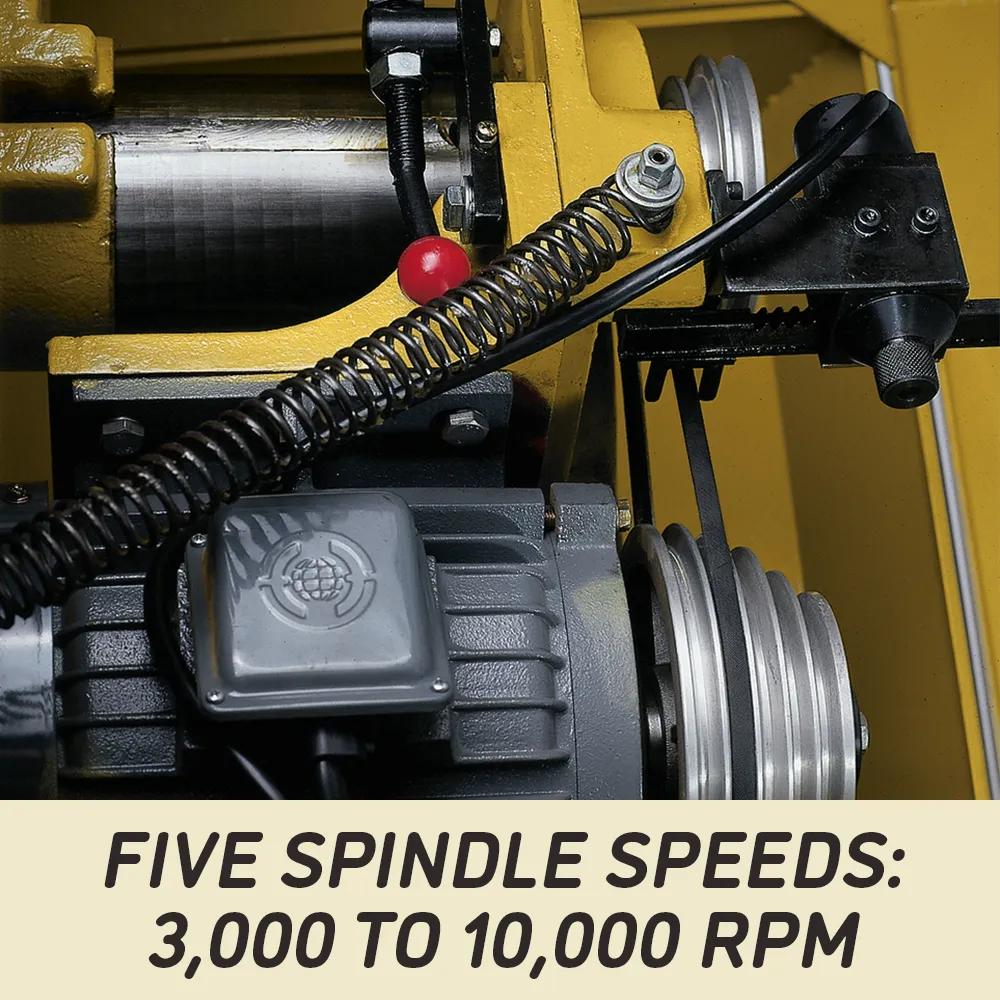

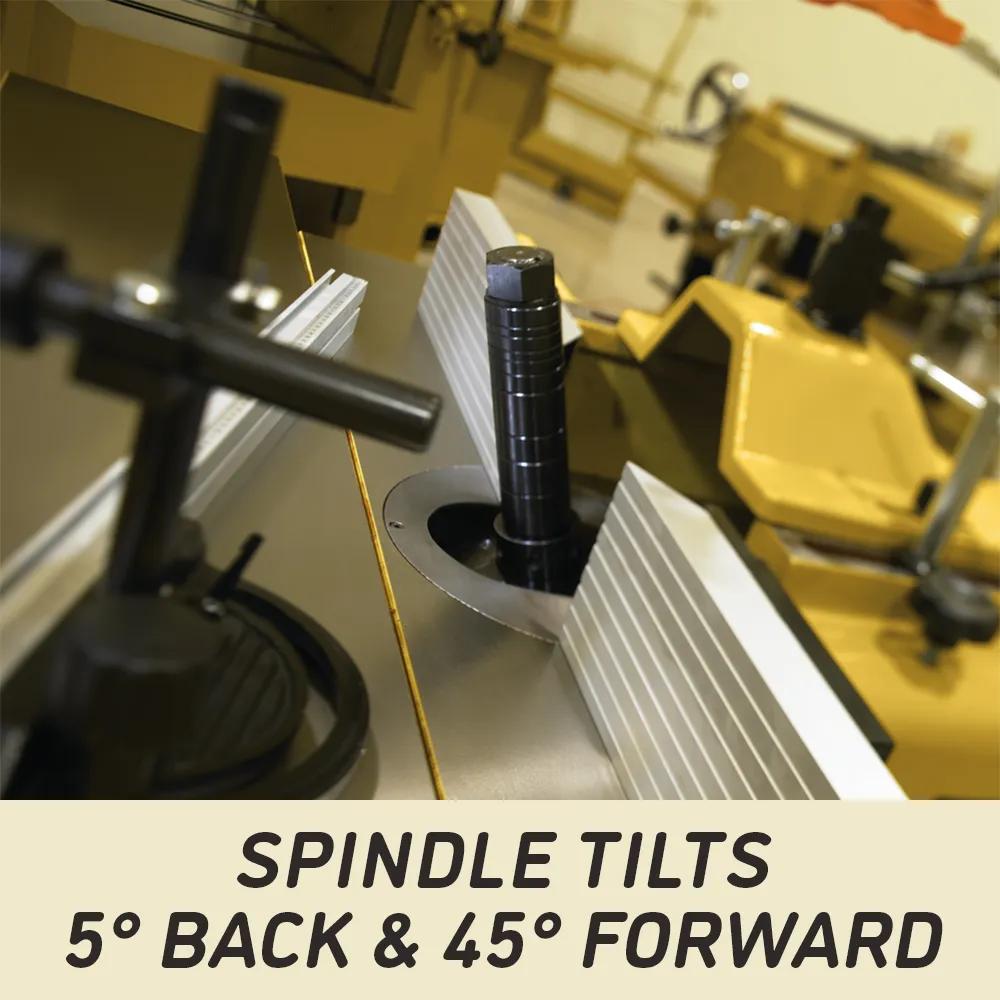

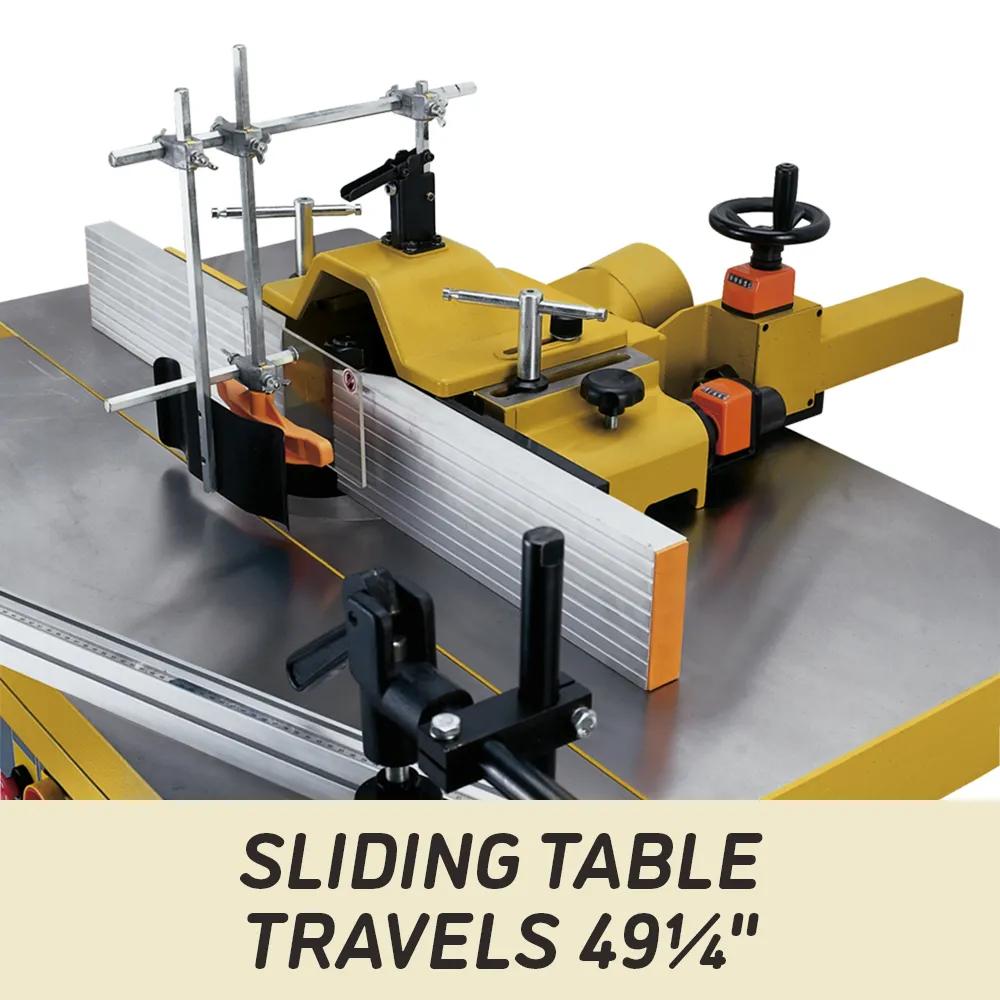

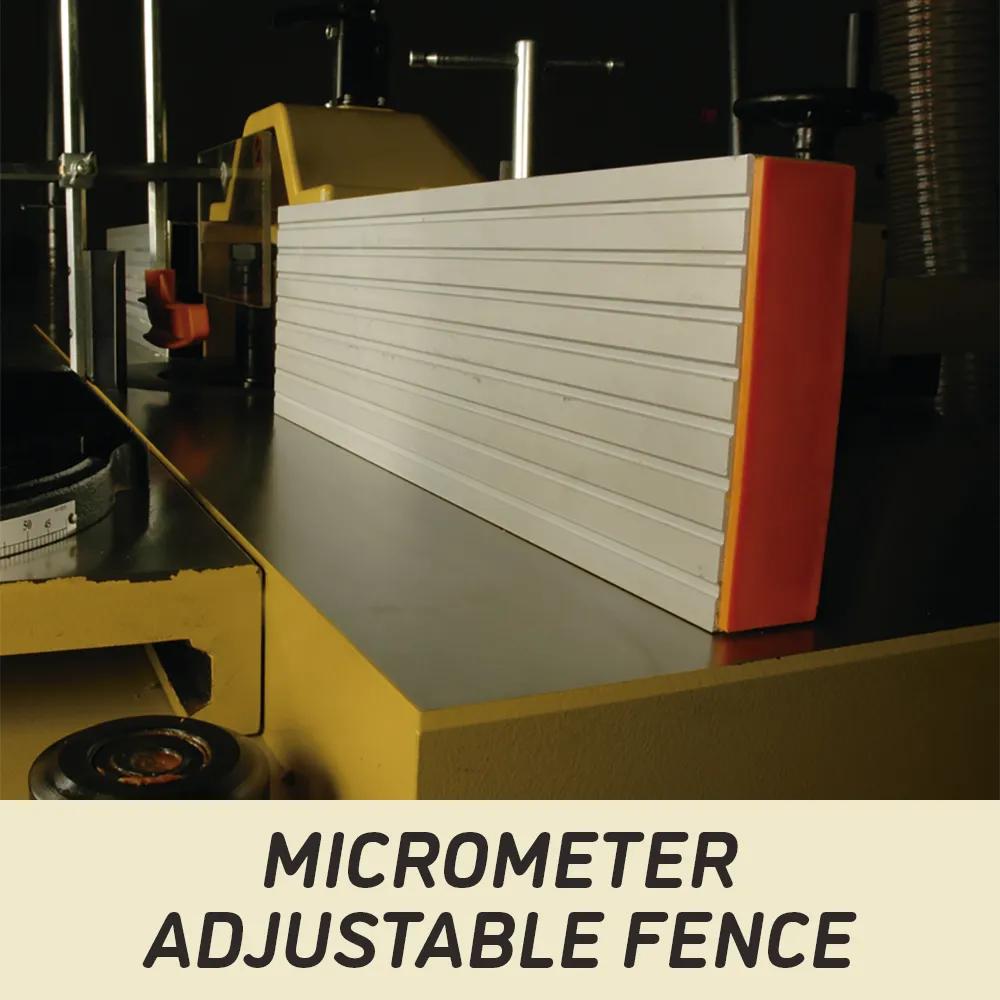

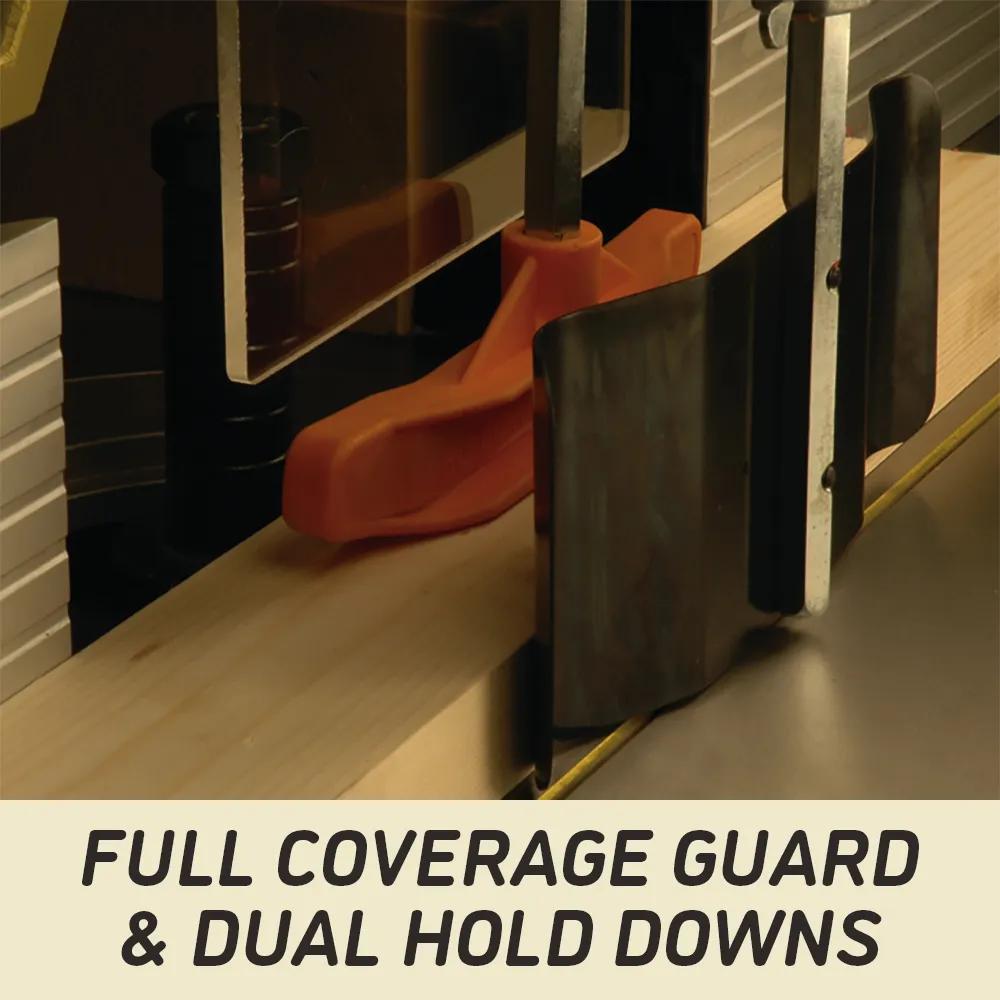

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.
| Stock Number | PM9-1791284 |
|---|---|
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 5 |
| Maximum Diameter Cutter Above Table (In.) | 12 |
| Maximum Diameter Cutter Below Table (In.) | 9 |
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Model Number | TS29 |
| Motor Phase | 3 |
| Motor Power (HP) | 7-1/2 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Closed Stand |
| Warranty | 5 Year |
| Gross Weight | 1280.0 |
| Net weight | 1100.0 |
